PH-CJ37 - Central unit
Regular price:
Regular price:
product unavailable
add to wish list
0
Description

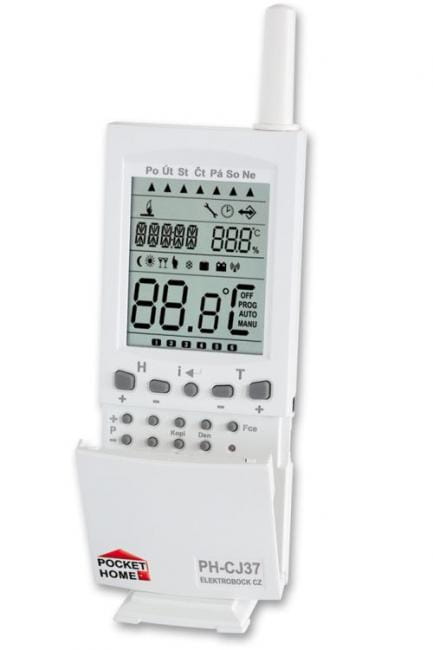

PH-CJ37 - Central unit
Properties PH-CJ37:
Central unit to determine the temperature in the rooms we have, for example, found in the position (in%) are heads of individual valves PH-HD20, and what is in the actual room temperature. Notify us in the incoming battery in the devices or the failure of communication with some of the equipment set. (NEW VERSION 11.05)
Advantages PH-CJ37:
- 22 weekly temperature programs (optional)
- premature activation of heating (PZT)
- PI control
- holiday function
- summer mode
- the possibility of management through a PC or GSM module
- information on connected devices
- automatic changeover to the summer (winter) time
- indication of operating hours
- calendar 2025
- indication of maintenance of the boiler
- E-EPROM memory for unlimited data storage
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 2 x 1,5 V alkal.batteries type AA |
| Communication type | two-way wireless |
| Frequency | 433,92 MHz |
| Range | 300m(in the open area), 35m (in the built-up area) |
| Num. of temp. changes | 6 temp. changes per day |
| Hysteresis | 0,1°C to 1,5°C |
| Minimum program. time | 10 min. |
| Temp. setting range | +2°C to +39°C |
| Temperature setting | by 0,5°C |
| Min. indicating jump | 0,1°C |
| Measurement accuracy | ?0,5°C |
| Life of batteries | 1 to 3 years acc. to the bat. type |
| Protection degree | IP20 |
| Working temperature | 0°C to +40°C |
PC Connectivity - NEW VERSION OF SOFTWARE!!
Purchasing software PocketHome? can all settings (constant, programs) to create directly on the PC. Programming thus becomes very simple and quick. At the same time, you can monitor the current status of all elements and visually monitor the temperature setting in the color chart. All settings are played back to a central unit and the role of the PC is no longer needed. The PC is not included with the central unit!
Operation via Mobile
Another possible control to the central unit is a GSM module GST1. Get a device that will allow us to remote control and control over the object. To prior to arrival at the cottage to enable heating? For the PocketHome is no problem.Modul PH-GST1 not included with the central unit!
